    Automatic 300g 500g Sugar Spices Powder Bottle Filling Machine

    Ask Lasest Price
    Brand Name : CS
    Model Number : CS
    Certification : CE
    Price : Price negotiable
    Payment Terms : T/T
    Supply Ability : 100 units per month
    Delivery Time : Delivery date negotiable
    • Product Details
    • Company Profile

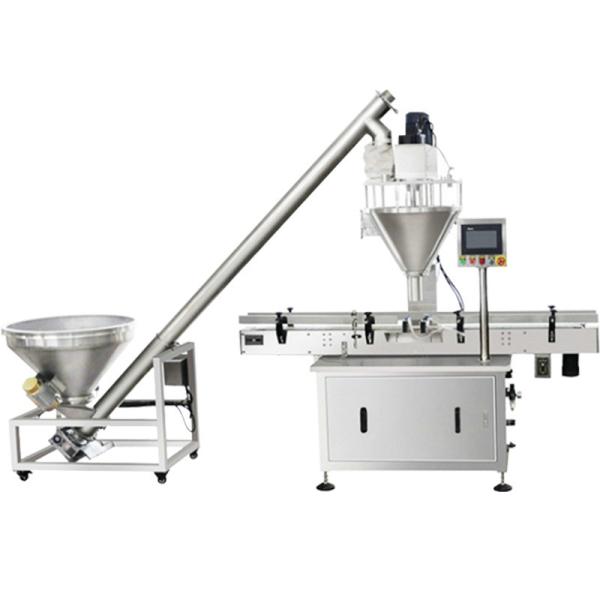

    Automatic 300g 500g Sugar Spices Powder Bottle Filling Machine

    Automatic 300g 500g Sugar Spices Powder Bottle Filling Machine


    Bottled powder filling machine is an automated equipment used to quantitatively fill powdered materials (such as milk powder, medicines, food additives, chemical raw materials, etc.) into bottles.
    Automatic quantitative filling
    Precise metering: Through screws, turntables or volumetric metering devices, high-precision quantitative filling of powders is achieved, and the error is usually controlled within the range of ±0.5%-2%.
    Multi-specification adaptation: Supports filling requirements of different weights (such as 50g, 200g, 1kg, etc.), and can be flexibly switched by adjusting parameters or changing molds.
    Automatic operation
    Automatic bottle loading/unloading: Integrated conveyor belt or bottle unscrambler, automatically completes the conveying, positioning and output of finished products after filling of empty bottles.
    Leak-proof design: The filling head adopts a sealed structure to avoid powder overflow, reduce waste and pollution.
    Synchronous sealing: Some models can be linked with capping machines and aluminum foil sealing machines to achieve integrated filling-sealing operations.


    Product Paramenters
    Model
    CS-2
    CS-3
    Metering Mode
    Auger filling
    Package Weight
    10-500g (by changing the auger attachment)
    50-5000g (by changing the auger attachment)
    Package Accuracy
    ≤±0.5-2%(according to the packaging weight and product size)
    Packing Speed
    10-20times/min(according to the packaging weight and product size)
    Power Supply
    380V/220V 50Hz/60Hz
    Hopper Volume
    25L
    50L
    Total Power
    1.5Kw
    2Kw
    Total Weight
    180kg
    300kg
    Overall Dimensions
    2400*800*1850mm
    2400*900*1950mm
    Interface
    PLC control system, 5.7 inch touch screen
