Fully Automatic Bread Food Bagging Machine 13-40 Bags/Minute

    Buy cheap Fully Automatic Bread Food Bagging Machine 13-40 Bags/Minute from wholesalers

    Buy cheap Fully Automatic Bread Food Bagging Machine 13-40 Bags/Minute from wholesalers
    • Buy cheap Fully Automatic Bread Food Bagging Machine 13-40 Bags/Minute from wholesalers

    Fully Automatic Bread Food Bagging Machine 13-40 Bags/Minute

    Ask Lasest Price
    Brand Name : CS
    Model Number : CS-480
    Certification : CE
    Price : Price negotiable
    Payment Terms : T/T
    Supply Ability : 100 units per month
    Delivery Time : Delivery date negotiable
    • Product Details
    • Company Profile

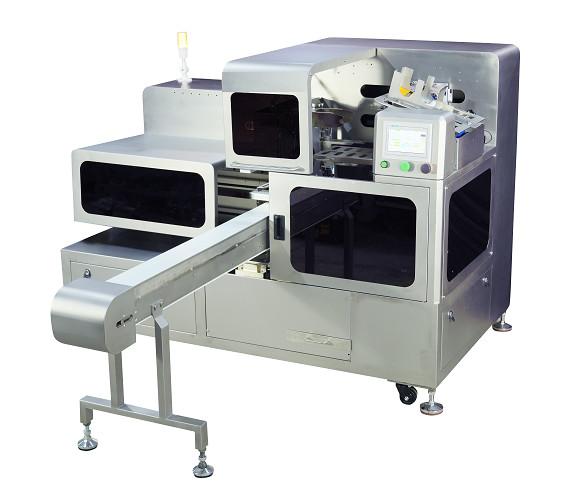

    Fully Automatic Bread Food Bagging Machine 13-40 Bags/Minute

    Fully Automatic Bread Food Bagging Machine Increases Production And Reduces Costs


    Bread bagging machine is a special equipment for automatic bagging and packaging of bread and similar foods. It can greatly improve packaging efficiency and ensure the hygiene and quality of packaging. The following is a detailed introduction for you:

    Working principle

    The working process of the bread bagging machine is as follows: first install the packaging material, then pull the packaging paper down through the bag pulling motor, and the paper supply part supplies paper according to the signal of the paper supply sensor. After the packaging paper is formed by the former, the bottom of the packaging bag is sealed by the heating and sealing part, and then the material enters the packaging machine, and is sealed again and cut off, and a complete packaging bag is completed. Some models also have inflation or exhaust functions, such as nitrogen, air, etc., to extend the shelf life of bread.


    Type

    There are many types of bread bagging machines. In terms of automation, they can be divided into manual bagging machines, automatic bagging machines and fully automatic bagging machines. Among them, the fully automatic bagging machine has the highest degree of automation and can realize the full process automation operation from bag supply, bagging to sealing. In terms of packaging form, it can be divided into pillow packaging machines and bag opening packaging machines. The pillow packaging machine is suitable for all kinds of breads with regular shapes and can be packaged continuously; the bag-opening packaging machine is designed for four-corner bags. It can accurately push the bread into the bag by opening the bag with a suction cup.


    Parameter CategoryGeneral Parameters
    Packaging Speed10-250 bags/min
    - Economy: 1-30 bags/min
    - Medium: 30-60 bags/min
    - High-speed: 120-250 bags/min
    Max Packaging SizeL≤600mm × W≤400mm × H≤500mm
    - Standard: L600×W400×H500mm
    - Customizable: Supports L>800mm
    Power Supply & Wattage220V/380V, 1.5-13kW
    - Small 机型: 220V/2.1kW
    - Large 机型: 380V/13kW
    Air Source Requirement4-7kg/cm² air pressure (compressor needed for some models)
    - Bag-opening 机型: Required
    - Pillow 机型: Optional
    Packaging MaterialsPlastic bags, composite films (PE/PET, OPP/PE, etc.)
    - Supports heat-shrink films (POF/PE)
    - Compatible with aluminum foil composites
    Applicable ProductsToast, cakes, waffles, steamed buns, etc.
    - Regular shapes: Pillow
    - Irregular products: Bag-opening
    Control SystemPLC Touchscreen + Servo Motor
    - Quad-servo drive
    - Mitsubishi PLC + touchscreen)
    Special FeaturesNitrogen filling/air evacuation, anti-empty bag, anti-mis-cut, continuous packaging
    - Nitrogen device
    - Anti-mis-cut system
    Machine Weight320-1000kg
    - Lightweight: 320kg
    - Heavy-duty: 1000kg
    DimensionsL1700-3800mm × W700-950mm × H1400-1600mm
    - Compact: L1760×W940×H1580mm
    - Large: L3770×W720×H1450mm
